Sorry - this product is no longer available

KITESURF FOIL

F-one Hydrofoil Escape Carbon 530

F-one Hydrofoil Escape Carbon 530

The Escape foil is nothing less than a master piece of hydrodynamic refinement and composite craftmanship.

  • Amazing Glide & Speed
  • Control at high speed
  • Monobloc: 1 pc Carbon Construction

Area: 530 cm²
Span: 58 cm
Aspect Ratio: 6.3
Weight: 1,06 kg (wing only)

DESCRIPTION

Designed to foil at high speed with full control whatever the conditions, the Escape 530 offers enough performances to go racing but it’s “raison d’être” is first and foremost to provide the most exilherating ride on the water. Light or strong wind, racing or carving the Escape is a playful, nimble and enjoyable hydrofoil which delivers an amazing glide with a terrific speed potential and upmost control.

Such a level of performance is only possible through the use of a 1-piece monobloc construction where the entire plane (front wing, fuselage, stabilizer) is molded in one-shot out of pre-preg carbon with great craftmanship. The end result is a piece of carbon composite with the best possible strength and stiffness to make sure you are always in control.

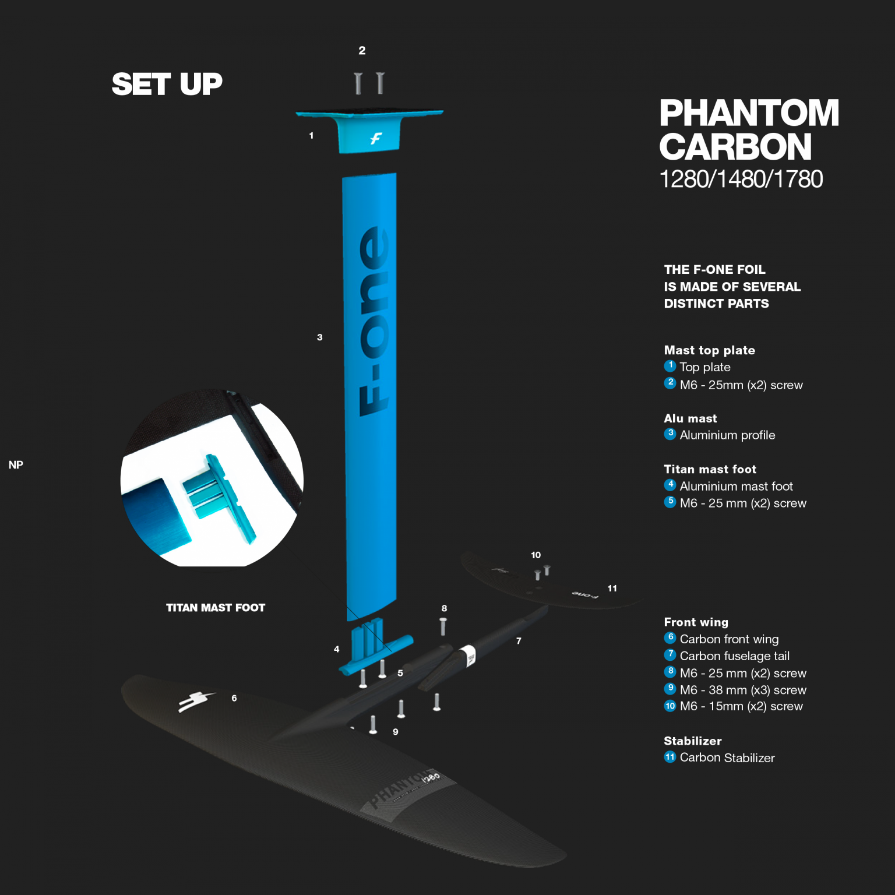

ASSEMBLY

TECHNOLOGY



DETAILS



ALU MAST 45 > 95 cm

The F-ONE aluminium mast can be used for all disciplines, kite, surf, stand up paddle, wing foil and windsurf. The profile is extruded with precision from 6063 aluminium block.

The shape of its section benefits from our years of experience in kitefoiling to provide the best gliding feel while keeping the strength up and the weight down.

It comes with two stainless steel helicoil inserts at the bottom and at the top to fasten the connecting parts and is therefore fully modular.

The aluminium mast can be used on every foil of the range and it is very easy to jump from one length to another (45 / 55 / 65 / 75 / 85 / 95 cm).

A number of parts are available for board connection (Plate, KF, Deep KF, Tuttle).

Sizes recommended:

  • 45 > 95 KITEFOIL
  • 55 > 75 SURF / SUP FOIL
  • 65 > 75 WING FOIL
  • 75 > 85 WIND FOIL

CARBON MAST 75 > 105 cm

A true masterpiece of composite craftmanship and design, the F-ONE Carbon Mast was designed to transform your foiling experience by a significant improvement of the glide and a dramatic weight reduction matched with impressive rigidity.



Available in 75 cm, 85 cm and 105 cm, the F-ONE Carbon Mast is ready for all disciplines: surf, wing, kite, SUP. It features a 4-bolt plate at the top (hole spacing: 160×90mm) and an integrated Titan mast foot at the bottom. It can be connected to virtually all boards on the market featuring the twin track system and can receive all the wings and fuselage that feature the TITAN connection slot.

Length: 75 cm / 85 cm / 105 cm
Chord: 12 cm
Profil Thickness: 1.45 cm
Weight: 1.40 kg / 1.52 kg / 1.81 kg

Recommendations:

  • 75 > 105 KITE FOIL
  • 75 SURF / SUP FOIL / WING FOIL

TITAN MAST FOOT

The TITAN mast foot is the connecting part that makes the F-ONE aluminium masts compatible with all TITAN fuselages and wings.

It is made of 6061 aluminium, CNC machined with high precision and fully anodized. To install the TITAN mast foot, it should be inserted into the bottom end of the aluminium mast and fastened with two M6x25mm tapered head screws.



Impact Surf F-ONE Official Dealer

Designed to foil at high speed with full control whatever the conditions!
Manufacturer: F-ONE
CALL FOR PRICING

F-one Hydrofoil Escape Carbon 530

The Escape foil is nothing less than a master piece of hydrodynamic refinement and composite craftmanship.

  • Amazing Glide & Speed
  • Control at high speed
  • Monobloc: 1 pc Carbon Construction

Area: 530 cm²
Span: 58 cm
Aspect Ratio: 6.3
Weight: 1,06 kg (wing only)

DESCRIPTION

Designed to foil at high speed with full control whatever the conditions, the Escape 530 offers enough performances to go racing but it’s “raison d’être” is first and foremost to provide the most exilherating ride on the water. Light or strong wind, racing or carving the Escape is a playful, nimble and enjoyable hydrofoil which delivers an amazing glide with a terrific speed potential and upmost control.

Such a level of performance is only possible through the use of a 1-piece monobloc construction where the entire plane (front wing, fuselage, stabilizer) is molded in one-shot out of pre-preg carbon with great craftmanship. The end result is a piece of carbon composite with the best possible strength and stiffness to make sure you are always in control.

ASSEMBLY

TECHNOLOGY



DETAILS



ALU MAST 45 > 95 cm

The F-ONE aluminium mast can be used for all disciplines, kite, surf, stand up paddle, wing foil and windsurf. The profile is extruded with precision from 6063 aluminium block.

The shape of its section benefits from our years of experience in kitefoiling to provide the best gliding feel while keeping the strength up and the weight down.

It comes with two stainless steel helicoil inserts at the bottom and at the top to fasten the connecting parts and is therefore fully modular.

The aluminium mast can be used on every foil of the range and it is very easy to jump from one length to another (45 / 55 / 65 / 75 / 85 / 95 cm).

A number of parts are available for board connection (Plate, KF, Deep KF, Tuttle).

Sizes recommended:

  • 45 > 95 KITEFOIL
  • 55 > 75 SURF / SUP FOIL
  • 65 > 75 WING FOIL
  • 75 > 85 WIND FOIL

CARBON MAST 75 > 105 cm

A true masterpiece of composite craftmanship and design, the F-ONE Carbon Mast was designed to transform your foiling experience by a significant improvement of the glide and a dramatic weight reduction matched with impressive rigidity.



Available in 75 cm, 85 cm and 105 cm, the F-ONE Carbon Mast is ready for all disciplines: surf, wing, kite, SUP. It features a 4-bolt plate at the top (hole spacing: 160×90mm) and an integrated Titan mast foot at the bottom. It can be connected to virtually all boards on the market featuring the twin track system and can receive all the wings and fuselage that feature the TITAN connection slot.

Length: 75 cm / 85 cm / 105 cm
Chord: 12 cm
Profil Thickness: 1.45 cm
Weight: 1.40 kg / 1.52 kg / 1.81 kg

Recommendations:

  • 75 > 105 KITE FOIL
  • 75 SURF / SUP FOIL / WING FOIL

TITAN MAST FOOT

The TITAN mast foot is the connecting part that makes the F-ONE aluminium masts compatible with all TITAN fuselages and wings.

It is made of 6061 aluminium, CNC machined with high precision and fully anodized. To install the TITAN mast foot, it should be inserted into the bottom end of the aluminium mast and fastened with two M6x25mm tapered head screws.



Impact Surf F-ONE Official Dealer
