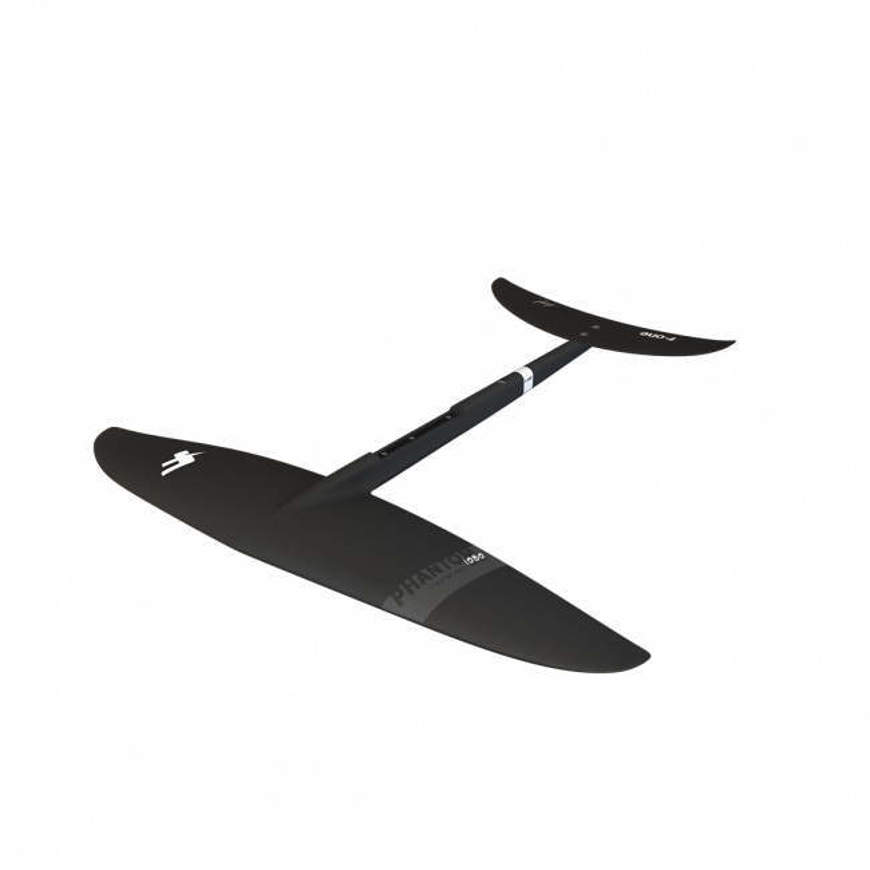

Phantom Carbon 980 + Fuselage carbon xs + Stab c.275 surf F-One
The foils of the PHANTOM line are designed to glide effortlessly when pumping or connecting waves and prove themselves very agile and precise when surfing and winging.
-Aspect Ratio: 6.0;
-Speed and glide;
-Radical turns and agile carving;
-Efficient pumping and planing start;
-Incredible freestyle abilities.
The PHANTOM CARBON range is well-balanced and will satisfy a broad variety of riders thanks to its wide size range and huge potential. These foils have it all and do everything well: a satisfying glide, a great planing start, and amazing carving abilities.
-The PHANTOM 980 is the newest size in this range. This is a high-performance foil that will allow you to take your skills to the next level in surf foil or wing foil, while maintaining good carving and pumping abilities.
Built using the Monobloc structure with pre-preg carbon, the foils are both very light and strong. This setup brings improved load transmission and better stiffness throughout the different parts for maximum control. The TITAN connection allows to plug in either an aluminum or carbon mast, and the fuselage is split in two to facilitate transport.
The PHANTOM CARBON 980 and 1080 are recommended with the C250 SURF or C250 FENCE. This stab has been thought out to perfectly exploit the power and abilities of these PHANTOM. Sharp and precise, it will allow you to gain speed and maneuverability, and to easily connect waves.
PRE PREG TECHNOLOGY:
Pre-preg makes the foils stiffer and stronger. With pre-preg fabrics, the carbon fiber is directly impregnated with epoxy resin by its manufacturer. This guarantees a perfect ratio between epoxy and carbon and represents the highest quality process. It is then cured at high temperature, bringing strength and durability. Quality control is much better and so is the working environment for the people building our foils. Pre-preg fabrics offer the lightest weight with the best mechanical properties of carbon fiber.
MONOBLOC STRUCTURE:
Having a stiff and solid assembly between all the parts of the foil is key to making it perform at its best as well as easy to handle. The connection of the front wing with the fuselage is highly stressed and loaded, so it is one of the critical areas of the assembly in terms of structures The Monobloc wings are molded together with the fuselage in one shot, thereby removing the connection and the chances for unwanted and parasitic movements.
The structural fibers of the fuselage are spread into the wing to achieve the smoothest and lightest connection. It is also incredibly stiff and provides absolute control at all times, with the foil responding perfectly to all of the riders’ input. When the overall dimensions are too large for convenient transportation, a connection is set into the fuselage, behind the mast where the loads are smaller.
TITAN CONNECTION:
The TITAN connection enables a very stiff and direct connection between two parts, locking efficiently any movement in all directions. Its format is compact which is hydrodynamically efficient and very easy to use, assemble and disassemble.
