AXIS Foils BSC Full Set
What does the set include?
1060mm BSC Carbon Front Wing
The Wing Broad Spectrum Carve (BSC) is a new form of easy-to-drive wing, with a good amount of performance embedded in the design. Perfect for all-round driving, even for basic riders.
The larger sizes are ideal for PUMPING, SUP, WINGING, WAKE.
For the BSC series, a refined foil section with a wide speed and stability range was used. This makes the BSC wings ideal for all rider levels and all conditions.
WINGSPAN: 1060 mm / 42 inches
MAX ROPE: 200 mm / 8 inches
ASPECT RATIO: 6.51
EFFECTIVE AREA 1803 cm square / 278 inches square
PROJECTED AREA: 1726 cm square / 268 inches square
VOLUME: 2800 cm cubes / 171 inch cubes
WING Surfing for all levels and medium+ conditions. Super stable for size
Downwinding - Medium+ and intermediate+ conditions
SUP/ Surf - Medium+ and intermediate level
Wake foiling - Intermediate level+
Pump foiling - Intermediate level+
Windsurf foiling - Intermediate level+
Kite foiling - Ideal for all styles, levels and conditions
S-Series Short Fuselage 68.5
The short fuselage of the AXIS S series is an anodized aluminum fuselage cut to CNC 3D, the length is 68 cm. Incredibly strong connection with wings of any size to create a very direct feel from your feet to the front wing, which is the most important part of surfing foiling.
(The longer the fuselage, the more stable the stroke. The shorter the fuselage, the looser and faster the turn)
400mm Carbon Rear Wing
The 400 mm AXIS S-Series carbon rear wing will make your ride more fun and performing being the most versatile and performance-oriented in the collection.
Doodad - Mast to Fuselage Adapter 19mm
Used to connect the 19mm shaft to the fuselage. AKA "Doodad"
19mm Aluminium 820mm Foil Mast
AXIS shafts are rigid, durable and ready for any use and condition. designed to give foilers a very direct feel to their foil, which is critical for foiling. It’s even stiffer than any other carbon tree on the market today. This gives you more control and fast input from your feet to the front wing.
Perfect for: higher performance on Surf, tow-in, Wake, Pump, SUP, Wing or Kite
19mm Aluminium Foil Base Plate
AXIS Foil Plate support is made of high-quality aluminum, 3D CNC machined and anodized. This is a very stiff piece, designed to hold firmly and forcefully the shaft of your foil. Multiple holes give you flexibility to position the foil. And the sliding ends allow you to remove the plate simply by loosening the screws, without having to completely unscrew the M8 bolts from the board.
Full Screws and Tool Set for AXIS Hydrofoils
Complete set of screws and tools for Hydrofoil S series for Wingfoil and SUP Foil. Included in the set of screws and keys All Black series and S series:
- 2 x M8*35 Countersunk 316 grade Torx drive Stainless Steel screws
- 2 x M8*70 Countersunk 316 grade Torx drive Stainless Steel screws
- 2 x M8*30 Countersunk 316 grade Torx drive Stainless Steel screws
- Torx Key for M8
- Torx Key for M6
- 2 x M6*14 Countersunk 316 grade Torx drive Stainless Steel screws
- 2 x M6*22 Countersunk 316 grade Torx drive Stainless Steel screws
- 2 x M6*25 Countersunk 316 grade Torx drive Stainless Steel screws
- 4 x mast track sliders
- 8 x M8 x 25 Countersunk 316 grade Torx drive Stainless Steel screws
- 4 x M8 x 20 Countersunk 316 grade Torx drive Stainless Steel screws
- +1 Degree Shim
Impact Surf AXIS Official Dealer

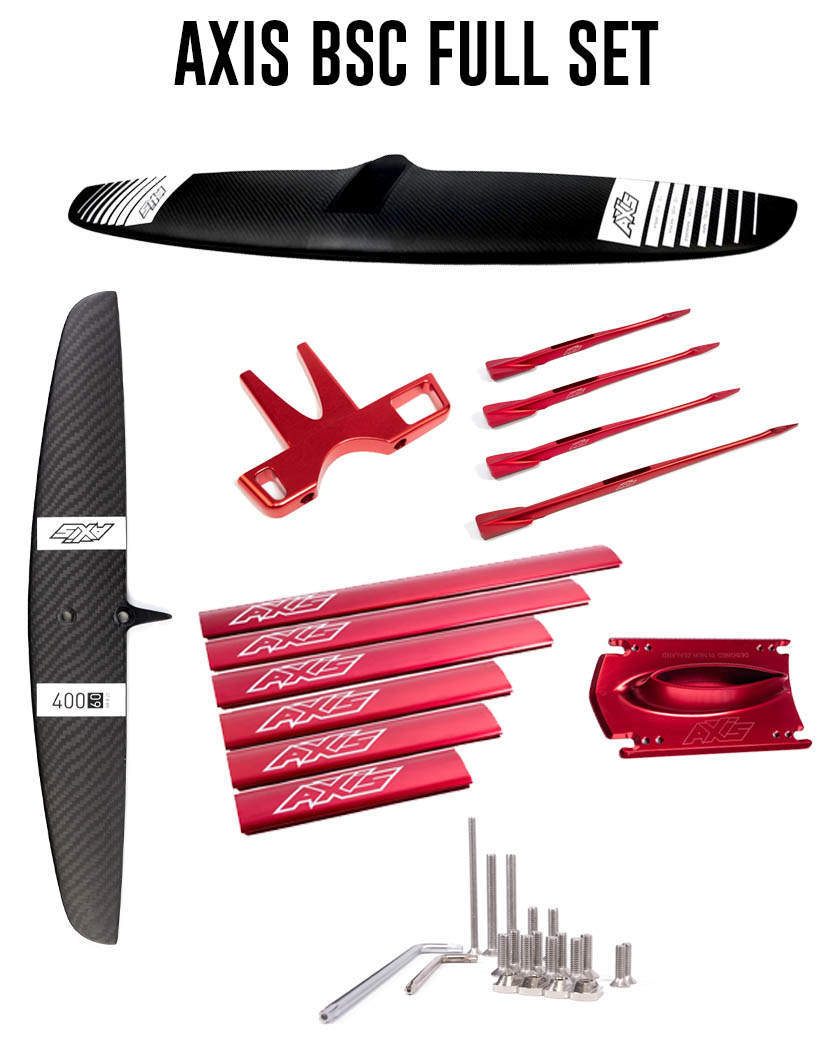

Set includes: 1060mm BSC Carbon Front Wing / 400mm Carbon Rear Wing / S-Series Short Fuselage 68.5 / 19mm Aluminium 820mm Foil Mast / 19mm Aluminium Foil Base Plate / Full Screws and Tool Set for AXIS Hydrofoils
