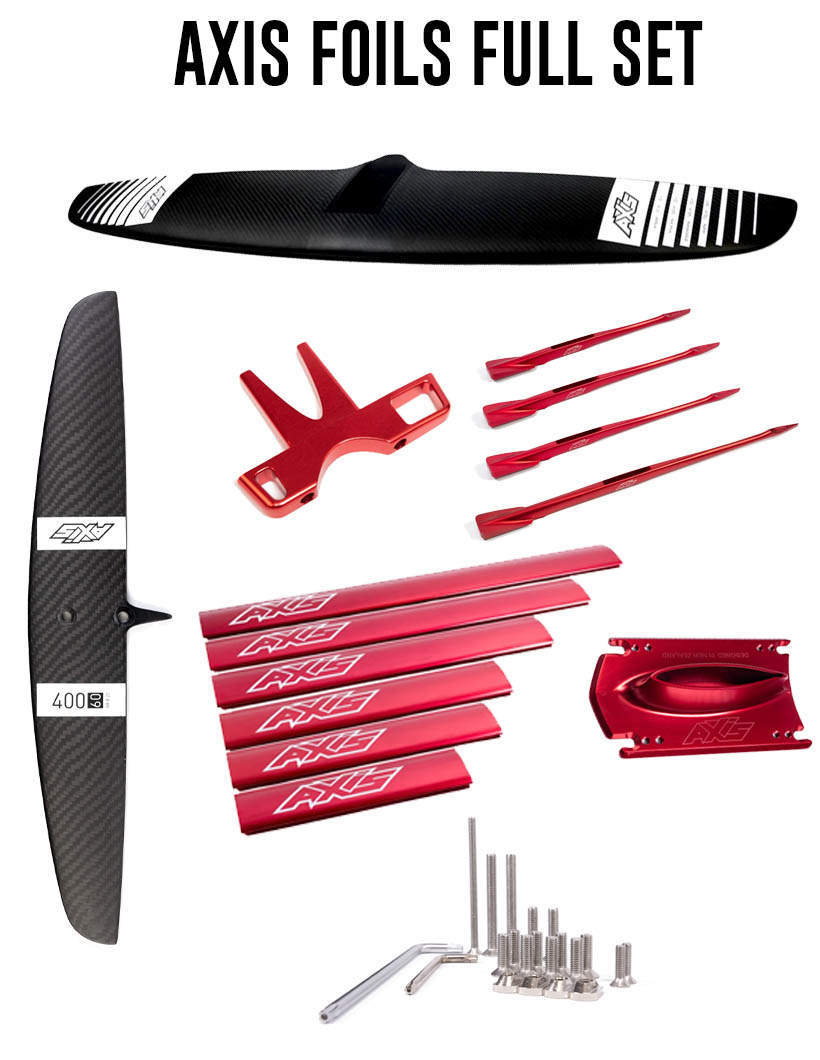

AXIS Foils Full Set
What does the set include?
1010mm PNG Carbon Front Wing
The AXIS PNG 1010mm carbon front wing is a newgeneration of high-potential wings, focusing on long and fast glides and pumping. Using a different section of the foil than the HA 900 and HA 1000 carbon sails, the 1010 was designed with easy downwinding in mind, while offering a huge amount of gliding and control. It also works surprisingly for SUP and SURF on fast waves from small to medium size, as well as for wingfoiling, pumping and foiling
MAX ROPE: 160 mm
EFFECTIVE AREA 1430 cm square / 222 inches square
WINGSPAN: 1010 mm / 40 inches
PROJECTED AREA: 1430 cm square / 222 inches square
VOLUME: 1732 cm cubes / 106 inch cubes
Downwinding - High Performance / Lighter wind
SUP / Surf - High Performance / medium-small waves
Wing Foiling, lighter winds
S-Series Ultra Short Fuselage 62.5
The AXIS S Series short fuselage is an anodized aluminum fuselage cut to CNC 3D, the length is 62.5 cm. Incredibly strong connection with wings of any size to create a very direct feel from your feet to the front wing, which is the most important part of surfing foiling.
(The longer the fuselage, the more stable the stroke. The shorter the fuselage, the looser and faster the turn)
400mm High Aspect Flat Carbon Rear Wing
The 400 mm AXIS High Aspect flat carbon rear wing AXIS Foils is one of the fastest rear wings and the perfect companion for any of Axis' high-performance front wings. This wing is fast, fun and ideal for all high-performance foiling. From winging, to SUP, downwind, kite, pump. A large high-performance rear wing for multiple uses.
Doodad - Mast to Fuselage Adapter 19mm
Used to connect the 19mm shaft to the fuselage. AKA "Doodad"
19mm Aluminium 820mm Foil Mast
AXIS shafts are rigid, durable and ready for any use and condition. designed to give foilers a very direct feel to their foil, which is critical for foiling. It’s even stiffer than any other carbon tree on the market today. This gives you more control and fast input from your feet to the front wing.
Perfect for: higher performance on Surf, tow-in, Wake, Pump, SUP, Wing or Kite
19mm Aluminium Foil Base Plate
AXIS Foil Plate support is made of high-quality aluminum, 3D CNC machined and anodized. This is a very stiff piece, designed to hold firmly and forcefully the shaft of your foil. Multiple holes give you flexibility to position the foil. And the sliding ends allow you to remove the plate simply by loosening the screws, without having to completely unscrew the M8 bolts from the board.
Full Screws and Tool Set for AXIS Hydrofoils
Complete set of screws and tools for Hydrofoil S series for Wingfoil and SUP Foil. Included in the set of screws and keys All Black series and S series:
- 2 x M8*35 Countersunk 316 grade Torx drive Stainless Steel screws
- 2 x M8*70 Countersunk 316 grade Torx drive Stainless Steel screws
- 2 x M8*30 Countersunk 316 grade Torx drive Stainless Steel screws
- Torx Key for M8
- Torx Key for M6
- 2 x M6*14 Countersunk 316 grade Torx drive Stainless Steel screws
- 2 x M6*22 Countersunk 316 grade Torx drive Stainless Steel screws
- 2 x M6*25 Countersunk 316 grade Torx drive Stainless Steel screws
- 4 x mast track sliders
- 8 x M8 x 25 Countersunk 316 grade Torx drive Stainless Steel screws
- 4 x M8 x 20 Countersunk 316 grade Torx drive Stainless Steel screws
- +1 Degree Shim
Impact Surf AXIS Official Dealer
set includes: 1060mm PNG Carbon Front Wing / 400mm High Aspect Carbon Rear Wing / S-Series Ultra Short Fuselage 62.5 / 19mm Aluminium 820mm Foil Mast / 19mm Aluminium Foil Base Plate / Full Screws and Tool Set for AXIS Hydrofoils
